Advanced Design in Fractionation Unit Fabrication UAE
The downstream energy sector in the United Arab Emirates relies heavily on the ability to separate complex fluid mixtures into valuable components. Whether refining crude oil into diesel and gasoline or processing natural gas liquids, the efficiency of this separation defines the profitability of the plant. Fractionation Unit Fabrication UAE is the technical service that brings these massive separation towers to life. At C&J Engineering, we specialize in constructing the vertical columns that form the skyline of every refinery and petrochemical complex. We combine thermodynamic expertise with heavy mechanical engineering to deliver units that achieve high purity levels with minimal energy consumption.
A fractionation unit, or distillation column, works on the principle of different boiling points. Inside the tall steel shell, rising vapor meets descending liquid, allowing mass transfer to occur. The internal components are the secret to this process. We fabricate and install a variety of internals based on the specific application. For high-capacity operations, we utilize valve trays or sieve trays that force the vapor to bubble through the liquid. For temperature-sensitive chemicals or applications requiring low pressure drop, we install structured or random packing. Our engineering team calculates the "Height Equivalent to a Theoretical Plate" (HETP) to determine exactly how tall the column needs to be to achieve the desired separation.
Material selection is critical in Fractionation Unit Fabrication UAE. The fluids inside these columns are often hot, hydrocarbon-rich, and corrosive. Sour crude contains sulfur compounds that attack standard steel. To combat this, we manufacture columns using high-grade materials. We work with carbon steel for standard service, but for more aggressive environments, we employ Stainless Steel 304L, 316L, or even Monel and Inconel. In many cases, we use "clad" plates—bonding a thin layer of expensive alloy to a thick backing of carbon steel. This provides the necessary corrosion resistance without the exorbitant cost of a solid alloy vessel. We ensure that every sheet of metal we cut meets stringent mill specifications.
Precision Assembly of Distillation Columns and Internals

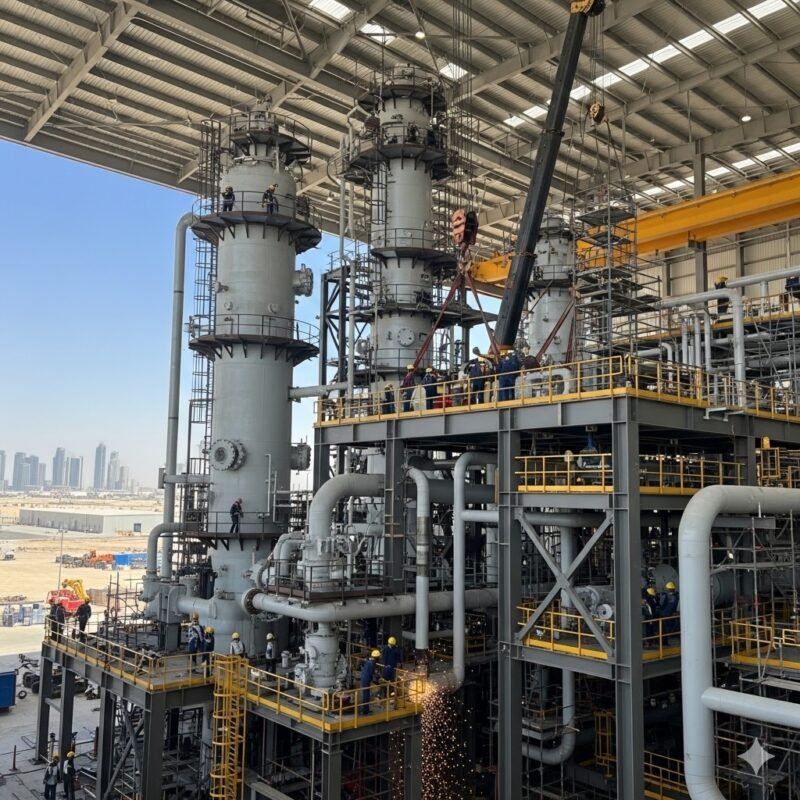

Building a tower that is 50 meters tall and weighs hundreds of tons requires a unique set of manufacturing skills. We perform the majority of our Fractionation Unit Fabrication UAE at our expansive facility in the Mussafah Industrial Area. We fabricate the column in sections, known as "cans." We roll thick steel plates into perfect cylinders and weld the longitudinal seams using automated submerged arc welding (SAW). This process ensures deep penetration and consistent weld quality, which is essential for maintaining pressure integrity. We then stack and weld these cans together, paying close attention to vertical alignment. A column that is not perfectly straight will cause liquid to channel to one side, ruining the separation efficiency.
The installation of internals is a delicate phase of the construction. Trays must be level to within a few millimeters across the entire diameter of the tower. If a tray is tilted, the liquid level will be uneven, leading to "weeping" or "dumping" where liquid falls through the vapor holes. Our technicians install the support rings and downcomers with laser precision.
We also fabricate and install the feed distributors, which ensure that the incoming fluid is spread evenly across the packing or trays. This attention to detail ensures that the column operates at its designed capacity from day one.
Transporting these massive units is a logistical challenge that we manage in-house. For columns that are too long to transport in one piece, we fabricate them in flanged sections that can be bolted or welded together at the site. We perform extensive testing before the unit leaves our yard. This includes hydrostatic testing to verify mechanical strength and tray leak testing to ensure internal performance. We also apply heavy-duty insulation supports and external platforms for maintenance access. C&J Engineering delivers more than just a steel vessel; we provide the core processing capability for your plant. We invite you to discuss your separation requirements with us and experience the quality of our fabrication firsthand.
